General features

Travel of the transverse axis
325 mm
Vertical axis travel
325 mm
Longitudinal axis length
600 mm
Spindle rotation range min.-max
100 - 4000 rpm (5000 rpm on request)
Spindle power
22 Kw
Spindle joint
ISO 40 - HSK 63
Workable diameter min.-max
20 – 275
Workable length min
200
Workable length on request
1000
Tapping size min-max
M5 - M24
Number of tools
10 - 20
General dimensions
9000 x 3000 x 2500
Machine weight
13700 Kg.
CNC
Fanuc - Siemens
1
Electric system standard series CNC Fanuc
2
• Chip conveyor

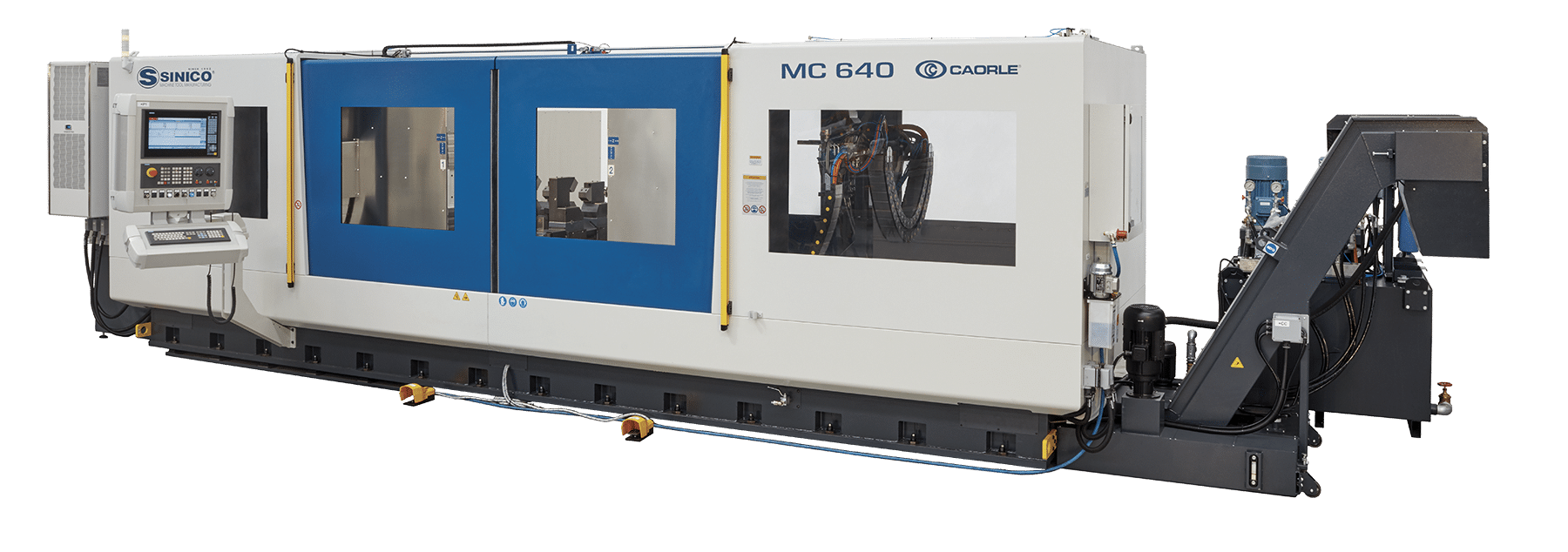

Caorle MC640

Versatile and Powerful.

Machining centre for machining at the ends, equipped with 2 opposing 3-axis operating units. Numerical control machine capable of simultaneously performing end machining on pipes or bars. Machine designed to be enslaved by an automatic loading system

It is able to perform operations of:

  • bezel
  • facing
  • drilling in axis and off axis
  • deep drilling in axis and off axis
  • thread
  • turning with static piece
  • boring
  • milling
